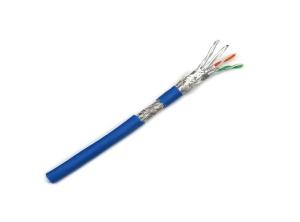

305m CAT6 SFTP Blue LAN Network Cable , Ethernet Extension Cable

Model Number : Ethernet Patch Cable

Place of Origin : Shenzhen,China

MOQ : NO

Price : Contact us for the price

Payment Terms : T/T, Western Union

Delivery Time : 10-15 days upon receipt of payment

Packaging Details : Carton box

Type : Cat 6

Color : red/yellow/blue/white/orange/grey

Application : Telecommunication

Jacket : PVC or LSZH

Length : 305m

Shield : SFTP

Conductor : Bare Copper

Packing : carton

Contact Now

305m CAT6 SFTP Blue LAN Network Cable , Ethernet Extension Cable

A Local Area Network or LAN cable now connects a massive number of personal computers, printers, file servers, and workstations in the modem office of business and manufacturing facilities. Local Area Networks such as token-ring networks or Ethernet are commonly connected by means of hubs.

LAN cables are relatively easy and simple to handle, install, use, and terminate. It is capable of performing efficiently and transmits the data accurately between the communication devices.

Cat6 Network cable Specification
Conductor Size	23AWG
Conductor Size	420.57
Conductor Material	BC
Nuber Of Conductor	4P
Shiled	SFTP
Indoor / Outdoor	Single jacket(PVC) / Double jacket(PVC+PE)
Insulation Material	PE , HDPE
Insulation Thickness	1.024mm
Number of pairs: 4 pairs	Pair1: Orange/White Orange Pair2: Blue/ White Blue Pair3: Green/ White Green Pair4: Brown/White Brown
Jacket Material	PVC, LSZH
Jacket Thickness	0.98mm
DC Resistance(Max.)	9.5Ω/100m
DC Resistance Imbalance	2.50%
Working Capacitance(Max.)	5.4nF/100m
Insulation Resistance	10000MΩ.km
Transmission Velocity	65%
Operating Temperation	-20 °C - +75 °C
