GYXTC8Y Figure 8 Central Loose Tube Multimode Fiber Cable , Metallic Type Aerial Optical Cable

Product Categories

HONGKONG INFINI CO.,LTD

Contact Now

Place of Origin : Shenzhen,China

MOQ : No

Price : contact us for the price

Payment Terms : T/T, Western Union

Model Number : Fiber Optic Cable

Certification : CE

Packaging Details : Drum

Delivery Time : 10-15 days upon receipt of payment

Fiber Count : 6, 12 , optiomal

Storage Temperature : -40 - 60°C

Application : Aerial

Core Material : Steel

Contact Now

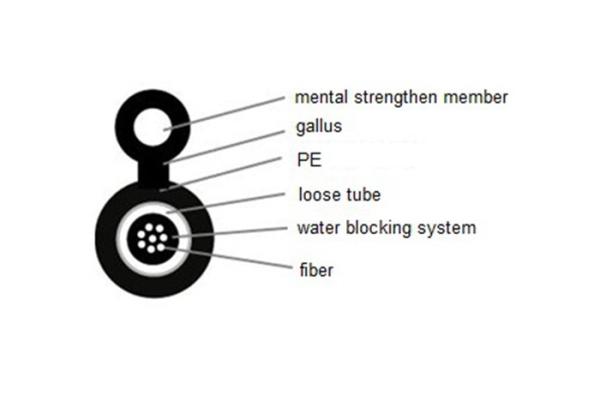

Figure 8 Central Loose Tube Multimode Fiber Cable , Metallic Type Aerial Optical Cable

GYXTC8Y Figure 8 Central Loose Tube Multimode Fiber Cable , Metallic Type Aerial Optical Cable

Technical characteristics

Excellent tensile strength for such small diameter

Low dispersion and attenuation

Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental

Small cable diameter, light cable weight, easily to install.

Recommended span length 50m for 1.6 steel wire messenger

Applications

Used for Rural communication,local trunk line and UCATV & computer networks system

Mechanical & Environmental Characteristics

Dimensional Characterstics
Fiber count	Outer sheath	Cable dia.(mm)	cable height(mm)	Messenger wire (mm)	cable net weight (kg/km)	strength short term(n)	crush pressure short term (n/100mm)	crush pressure short term(n/100mm)
2~12	PE	5	10.1	1.6	47	1000	1000	1000
